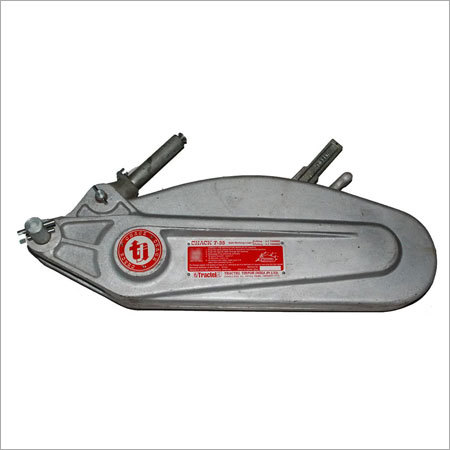

Industrial Pulling Lifting Machine

Jaw Grip

Drop Forged from alloy steel, precision machined and heat treated to prevent rope slip

Jaw Links

Made of alloy steel and heat treated to resist water.

Anchor hooks

for T-7, TU-20 and T-13 are of drop forged steel designed to withstand shock and surge load of several times their valid capacity.

Side cases

Pressed from steel Sheet cold drawn deep drawing quality duly electro galvanized capable of withstanding several times the working tensile stress. Hooks fitted with Safety Catches to prevent accidental release

Superflex Wire Ropes

Bright Dawn, Galvanized high tensile steel wire rope specially constructed within close tolerance having a mixed combination core for better flexibility.

Bearings

Graphitized nylon bearing requires no lubrication, used in T-7, T-13, and TU-20. Antifriction ball bearings are used in T-35 to bear heavy load and reduced the effort

Technical Data

T 7

T 13

TU 20

T 35

Weight (approx.)

7kg

17kg

18kg

26kg

Dimensions (approx.)

50x23x10cm

62x30x15cm

65.4x36x14.2cm

72x32x14cm

Capacity (SWL) :Lifting

750 kg.

1.6 Tonnes

2 Tonnes

3.2 Tonnes

Capacity (SWL): Pulling

1250 kg.

2.6 Tonnes

3 Tonnes

4.2 Tonnes

Length of Telescope Handing (approx.)

50/73 cm.

65/108 cm.

77/121 cm.

77/121 cm.

Effort (approx.)

30 to 45 kg.

50 kg.

47 kg.

60 kg.

Run of rope per return stroke (approx.)

60 mm

55 mm

52 mm

40 mm

The diameter of the rope (approx.)

8.3 mm

11.3 mm

11.3 mm

16.3 mm

weight of rope (approx.)

0.280 kg/m

0.548 kg/m

0.548 kg/m

1.050 kg/m

Breaking load of rope (approx.)

4.5 Tonnes

9 Tonnes

9 Tonnes

16 Tonnes

Length of rope (standard)

10 meters

20 meters

20 meters

10 meters

ISI marked

ISI marked

ISI marked
